Martin's Midibox Sequencer

First the credits: Original design by Thorsten Klose. See the http://www.ucapps.de page for more information.

Building the sequencer

The following pictures illustrate the work in progress - from the selection of parts for the functional modules to the ready build PCBs.

Part
Core

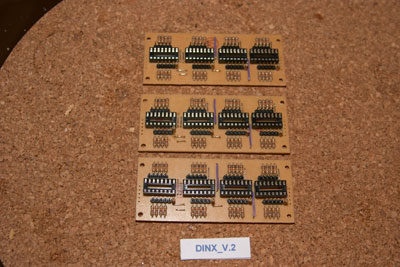

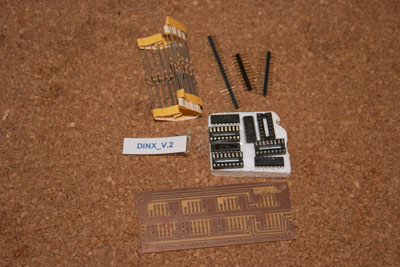

Digital input modules

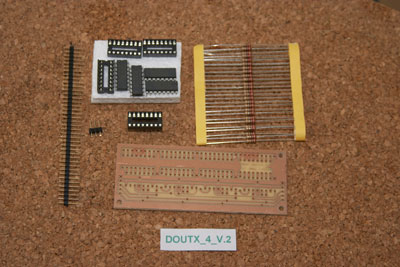

Digital output modules

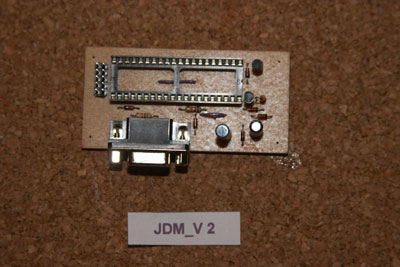

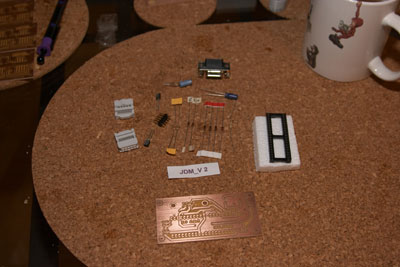

PIC programmer

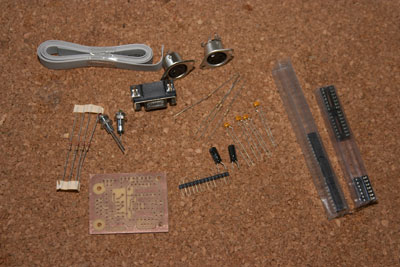

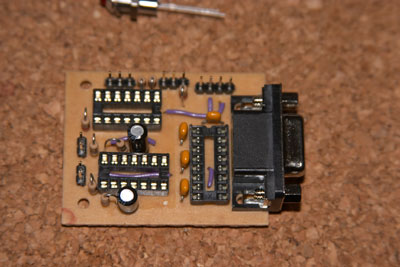

Additional MIDI / RS232 port (not used)

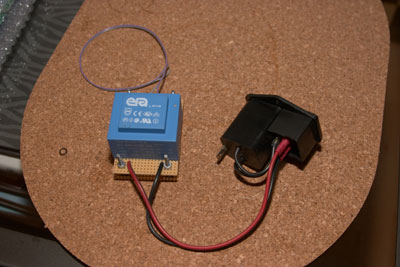

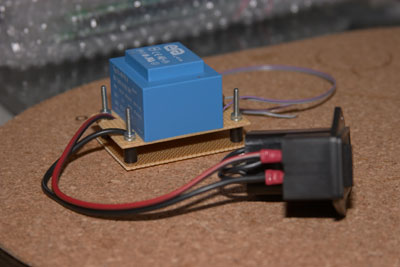

9V AC Powersupply

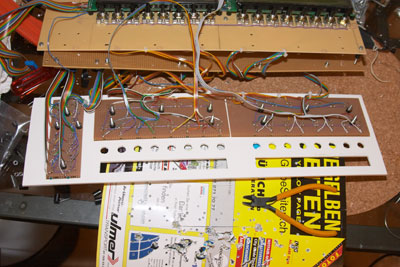

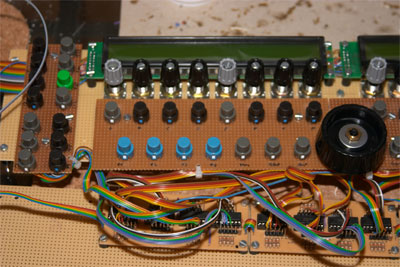

Frontpanel

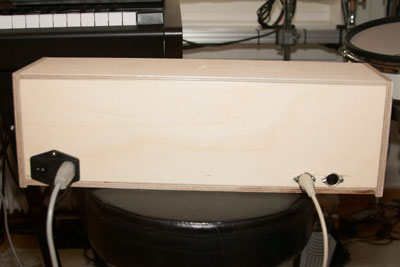

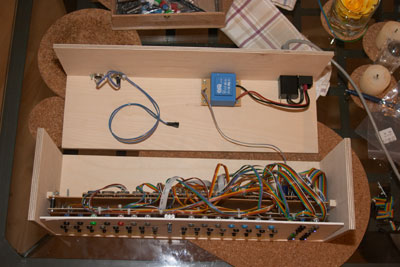

Case

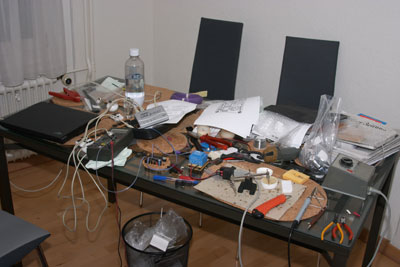

The chaos...

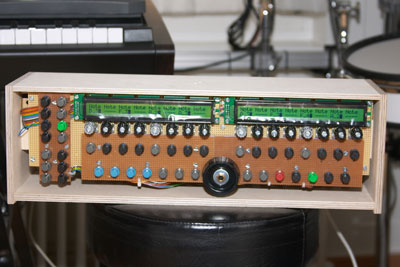

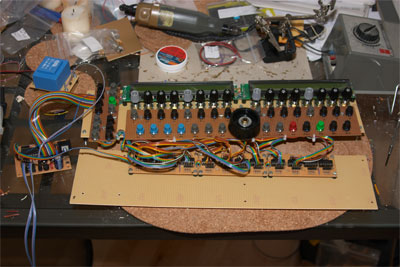

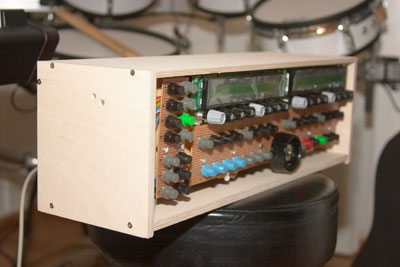

Finished!

Status

• All PCBs ready
• All buttons and dials connected
• All connections made
• Sequencer works
• LEDs fitted
• Frontpanel made

Demo Example

• Sequencer Demo Noodle (3.8MB, 4:11) - Live jam session with the Sequencer controlling bass and percussion.

ToDo

• Replace frontpanel with pro-made version
• Make music

Further music and material can be found on my main site.
